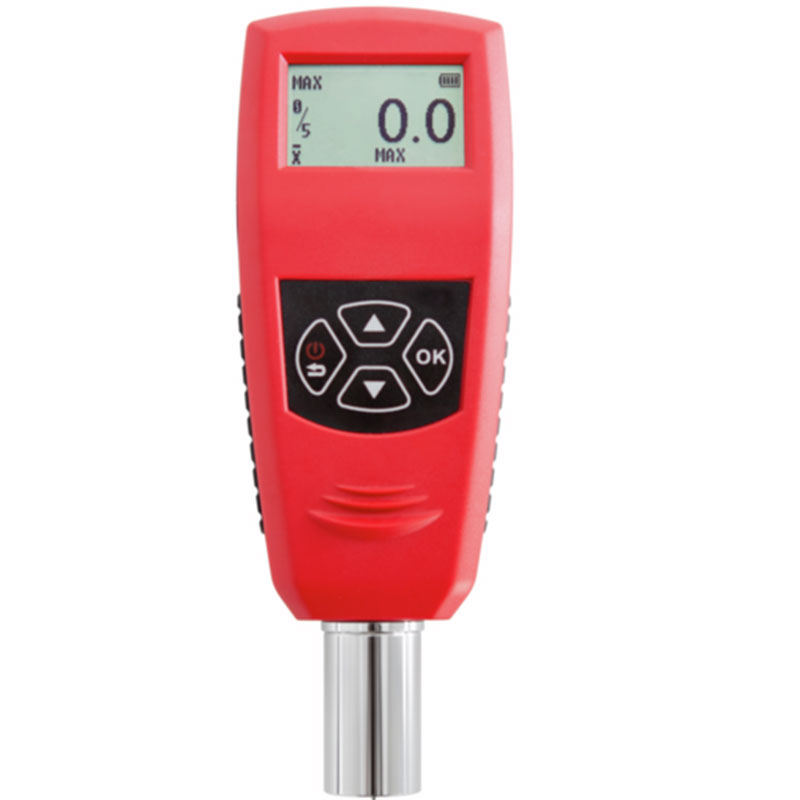

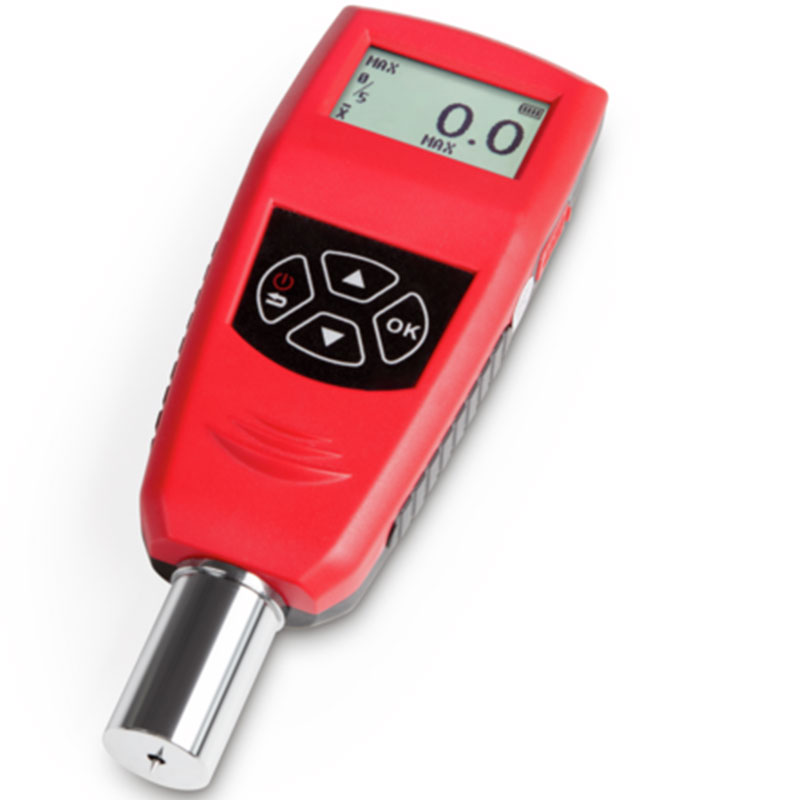

Digital Shore D Hardness Tester HED 100
Manufactured by Kern
The HED 100 Digital Shore D Hardness Tester offers extensive functionality when measuring the hardness of plastics, formica, epoxides, plexiglass, etc., through penetration measurement.
Recommended for internal comparison measurement it has three different measuring modes and a large display with backlight for enhanced clarity and visibility in dimly lit settings.
£688.00
Benefits
- Different measuring modes (Average value, maximum value, chronological sequence) offer the flexibility to test various materials and component sizes accurately.
- Limit alarm function, which triggers an audible and visual signal when the value goes below or above the defined limits.
- Entering the workpiece number is possible.
- Setting the measuring time from 0 to 99 seconds.

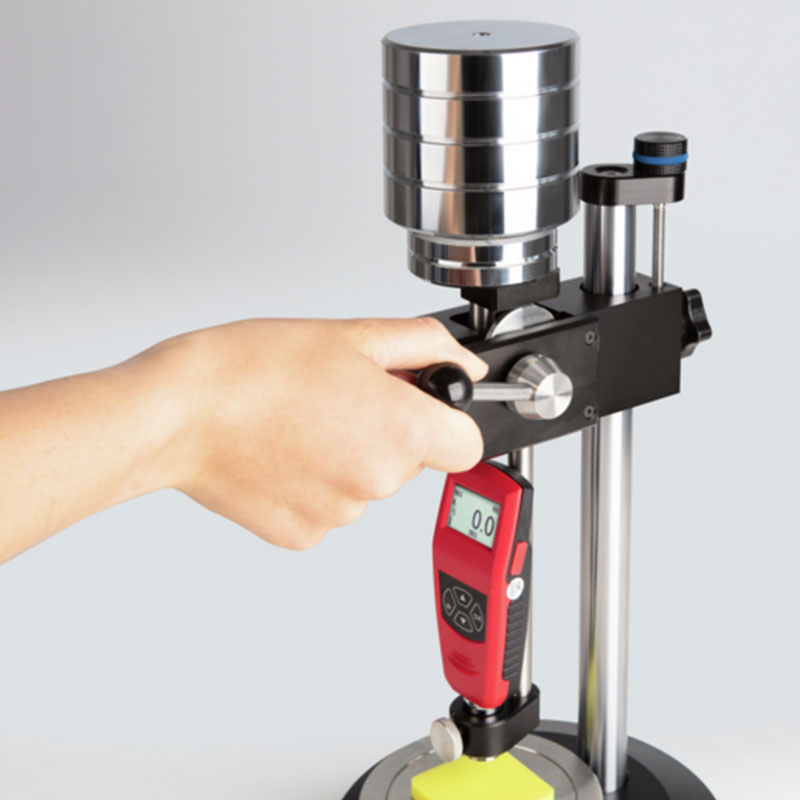

- Can be attached to the test stand SAUTER TI-HED to enhance the measurement result.
- Battery status indicator helps prevent inaccurate test results and unexpected downtime.
- USB data interface as standard.
- Delivered in a robust carrying case to protect the instrument and enable easy portability.
Suitable materials
- Plastics, formica, epoxides, plexiglass, etc.
Primary application areas
- Automotive industry.
- Food industry.
- Medical technology.
- Packaging industry.
- Plastics technology.
| Hardness scales | Shore D |
| Measuring range Shore [Max] | 100 HD |
| Readability Shore [d] | 0,1 HD |
| Tolerance (% of [Max]) | 1% |
| Hold function | |
| Peak function | |
| Function for averaging | |
| Interfaces | USB-Device |
| Material housing | plastic |

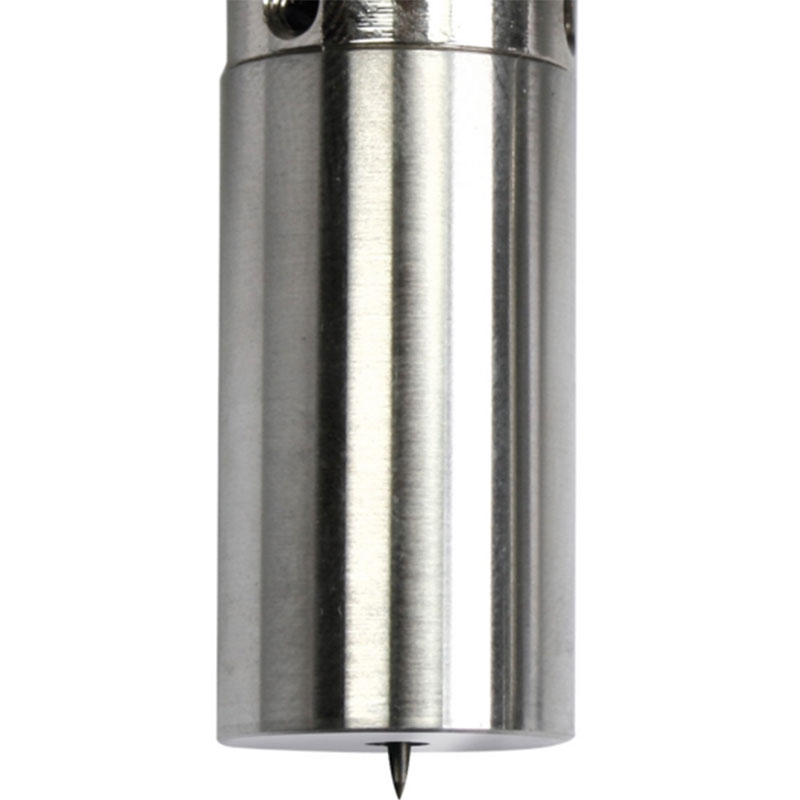

| Measuring probe diameter | 18 mm |
| Test force Hardness measurement | 50 N |
| GTIN/EAN number | 4045761274020 |
