Digital Shore A Hardness Tester HEA 100
Designed to measure the hardness of plastics through penetration measurement, the HEA 100 hardness tester (shore a) offers extensive functionality for the food industry, plastics technology applications, etc.
Recommended for internal comparison measurement of felt, leather, rubber, silicone, so plastics, vinyl, and other similar materials, it has three different measuring modes and a large display with backlight for enhanced clarity and visibility in dimly lit environments.
£588.00
Benefits
- Different measuring modes (Average value, maximum value, chronological sequence) offer the flexibility to test various materials and component sizes accurately.
- Limit alarm function, which triggers an audible and visual signal when the value goes below or above the defined limits.
- Entering the workpiece number is possible.
- Setting the measuring time from 0 to 99 seconds.

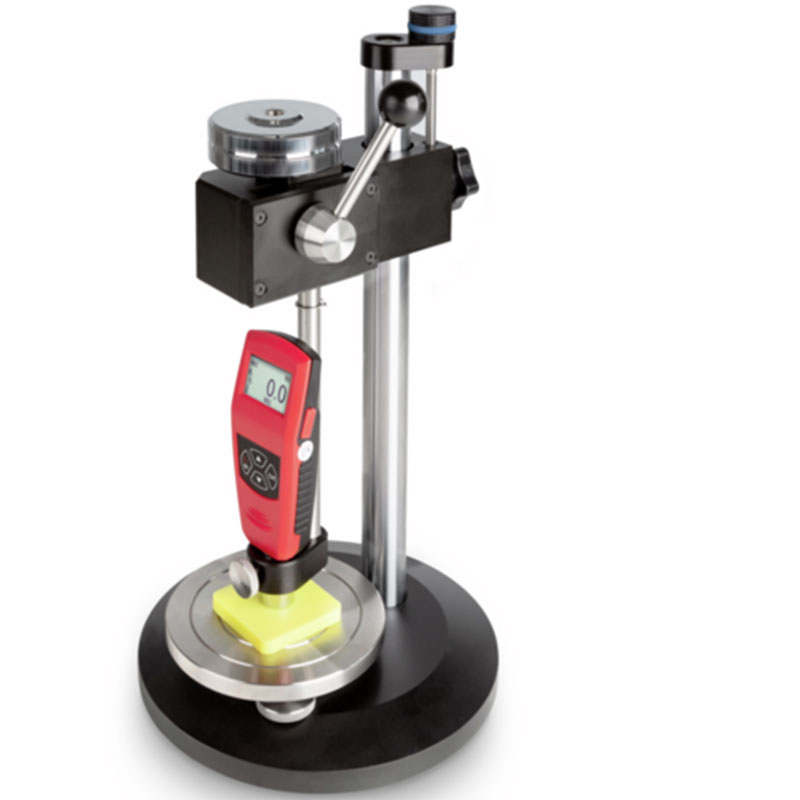

- Can be attached to the test stand SAUTER TI-HEA to improve the measurement result.
- Battery status indicator helps prevent inaccurate test results and unexpected downtime.
- USB data interface as standard.

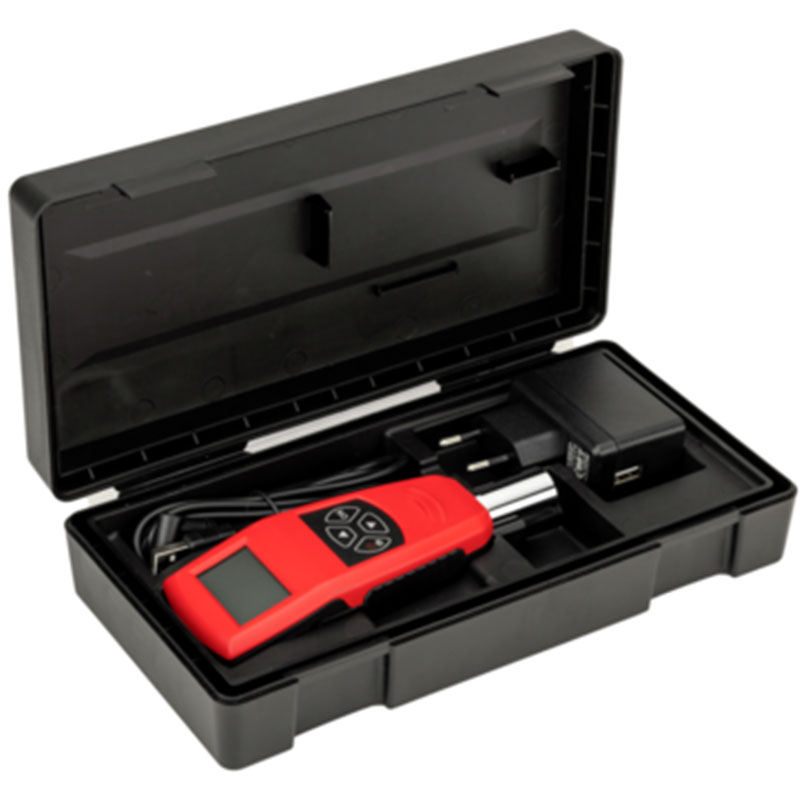

- Delivered in a robust carrying case to protect the instrument and enable easy portability.
Suitable materials
- Rubber, elastomers, neoprene, silicone, vinyl, so plastics, felt, leather, and similar materials.
Primary application areas
- Automotive industry.
- Food industry.
- Medical technology.
- Packaging industry.
- Plastics technology.
| Hardness scales | Shore A |
| Measuring range Shore [Max] | 100 HA |
| Readability Shore [d] | 0,1 HA |
| Tolerance (% of [Max]) | 1% |
| Hold function | |
| Peak function | |
| Function for averaging | |
| Interfaces | USB-Device |
| Material housing | plastic |
| Measuring probe diameter | 18 mm |
| Test force Hardness measurement | 10 N |
| GTIN/EAN number | 4045761274013 |
