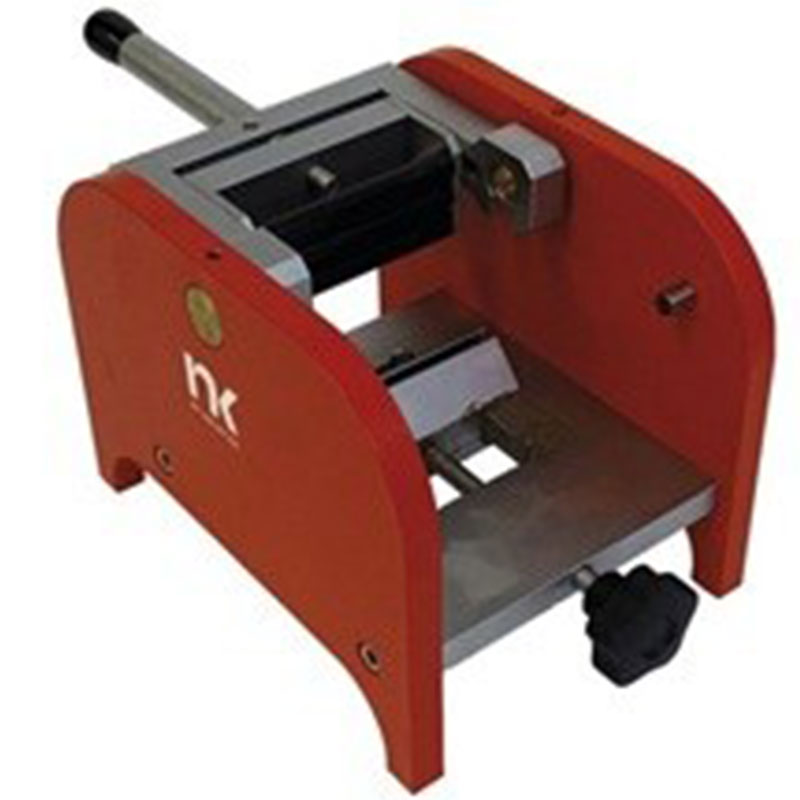

Cylindrical Mandrel Bend Tester

£2,054.55

Manufactured by Neurtek

This robust Cylindrical Mandrel Bend Tester provides precise, uniform bends across various mandrel diameters. Its stainless steel construction makes it suitable for frequent use in industrial environments for measuring the adhesion and flexibility of coatings and paints on metal sheets.

Compliant with UNE ISO 1519:2003 international bending test standards, the ergonomic design and manual lever enables easy handling and repetitive testing without fatigue.

The simple and efficient method (see further down the page) ensures fast and reliable results that are easy to document and compare between different batches or coatings

Qty:
Request a Quote Ask a Question Data Sheet

Benefits

  • Adjustable rollers and sliding vice.
  • Allows the flexibility and adhesion of the coating to be verified by progressively bending the sample over mandrels of different diameters.
  • 12 stainless steel mandrels.
  • Traceable calibration (SER-CT030).
  • Conical version also available.

How Does The Cylindrical Mandrel Bend Tester Work?

  1. Place the sample in the equipment clamp.
  2. Manually bend the sample around mandrels with decreasing diameters.
  3. Continue until the first cracks appear in the coating.
  4. The diameter at which cracks form indicates the material’s flexibility limit.

Typical Applications

  • Industrial environments.
  • Intensive labs.
  • Material studies where precise diameters are required.
  • Quality control labs.

Reviews

There are no reviews yet.

Be the first to review “Cylindrical Mandrel Bend Tester”

Your email address will not be published. Required fields are marked *

Standards

Complies with UNE ISO 1519:2003, UNE EN ISO 6860, and ASTM D 522-93a, ensuring internationally recognised results.

What’s Included?

  • Robust test unit with bending lever.
  • 12 stainless steel mandrels (2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25 and 32 mm).
  • Sliding clamp to secure the sample.
  • Carrying case.
  • Spanish manual.
  • Supports test panels up to 75 mm wide.
