Coating Thickness Gauge Digital TG

£545.00

Manufactured by Kern, Sauter

This premium coating thickness gauge is designed to measure things like paint layer and paint lacquer coatings used for varnishes, vehicles, and other industrial applications.

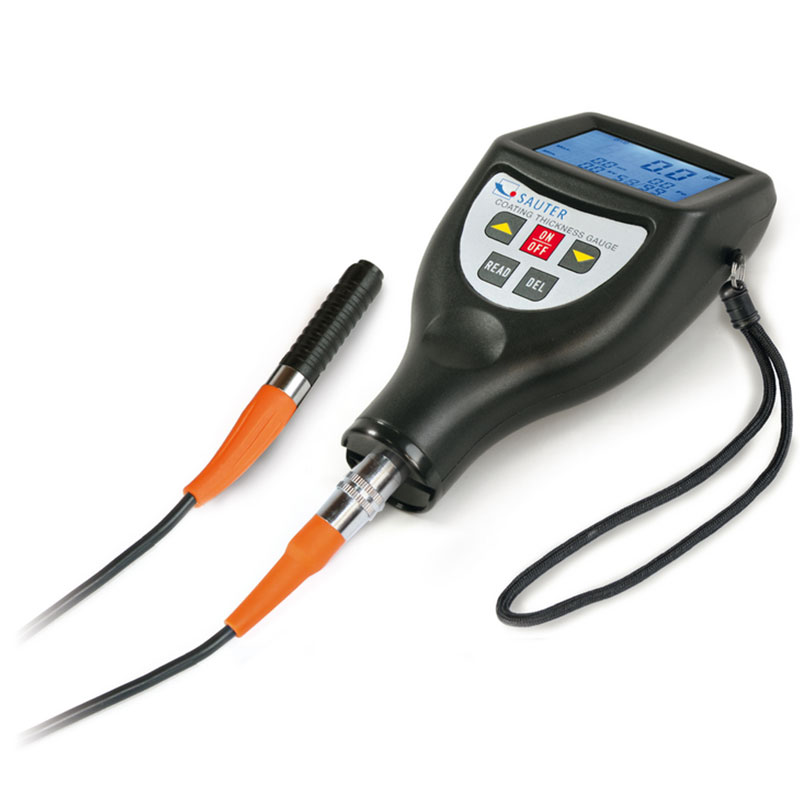

It has a measuring range coating thickness of 100 µm to 1250 µm, with an external sensor for difficult-to-access measuring points.

Optional Extras

Qty:
Request a Quote Ask a Question Data Sheet

Benefits

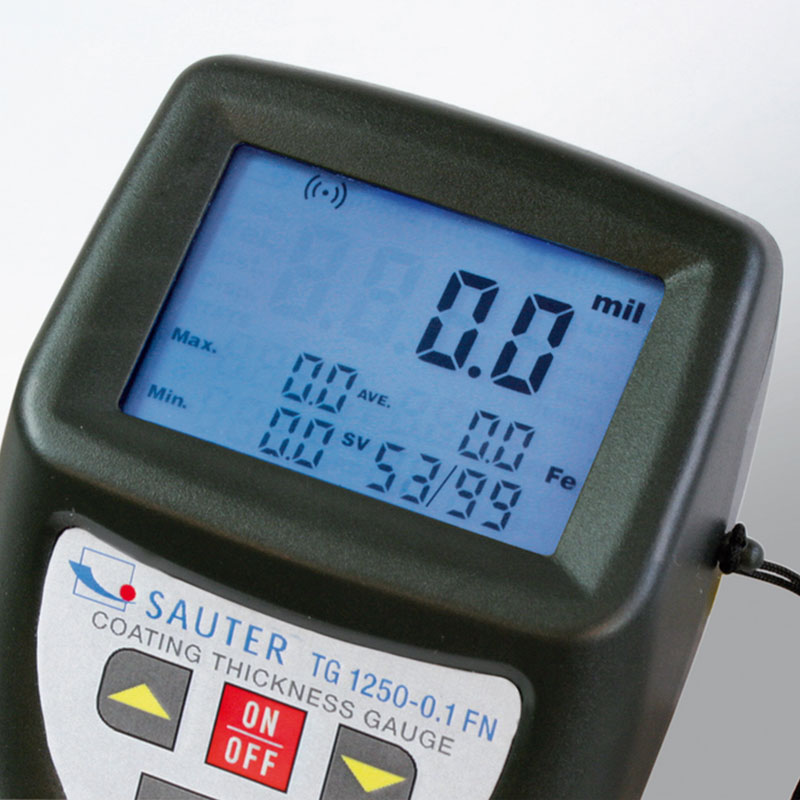

  • Easily see all information at a glance with the backlit LCD display.
  • Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of 1 % (or less) of the measured value.
  • Two different measuring modes: single measurement and scan mode for continuous measurement.
  • Mini Statistics Kit: displays the measured result, the average value and the max and the min value.
  • Internal memory for up to 99 measurement values.
  • Selectable measuring units: µm inch (mil).
  • Base plate and calibration foils included.
  • Data Interface RS-232 as standard.
  • Delivered in a robust carrying case.

Reviews

There are no reviews yet.

Be the first to review “Coating Thickness Gauge Digital TG”

Your email address will not be published. Required fields are marked *

Measuring range coating thickness [d] (µm) 100 µm; 1250 µm
Readability coating thickness [d] (µm) 0,1 µm; 1 µm
Tolerance (% of [Max]) 3%
Units µm, inch (mil)
Coating thickness gauge sensor type FE, NFE
Test object thickness coating Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N
Battery 2×1.5 V AAA
Memory Function ✓
Statistic Function ✓
Increase in measurement accuracy possible ✓
Continuous capture possible ✓
Material housing Plastic
Dimensions completely mounted (W×D×H) 130 × 64 × 32mm
Cable length 1 m
Sensor placement position External
