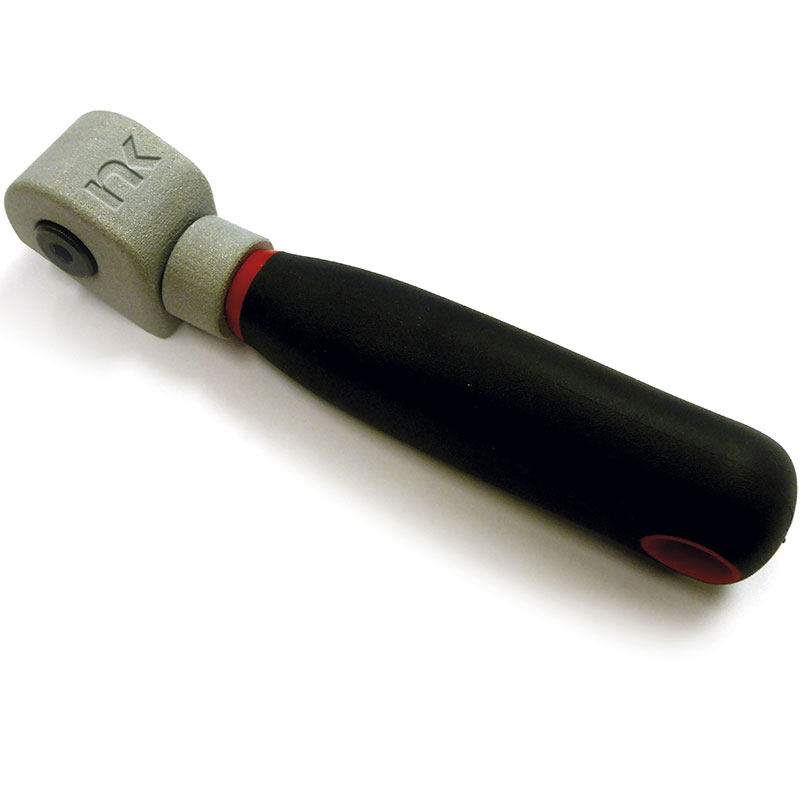

CC2000 Cross Cut Adhesion Tester

Benefits

• Compatible with industrial paints and coatings, and varnishes and lacquers.
• 3D-printed manufacturing, offering precision, lightness, and durability.
• CC2000 system adapts to different types of coatings thanks to its interchangeable blades (blades are sold separately and are available as optional extras).
• Can be evaluated from 0 to more than 250 microns using 1 to 4-step blades. There is also a special 11-cut 1 mm blade for specific applications.
• Exact cuts that guarantee repeatable results.
• Ergonomic handling and risk-free blade changes.
• Regulatory compliance — Ideal for the automotive, furniture, and industrial paint industries.
• Complies with UNE EN ISO 2409, ASTM D3359, and DIN 53151 standards.

Cross Cut Adhesion Test Procedure

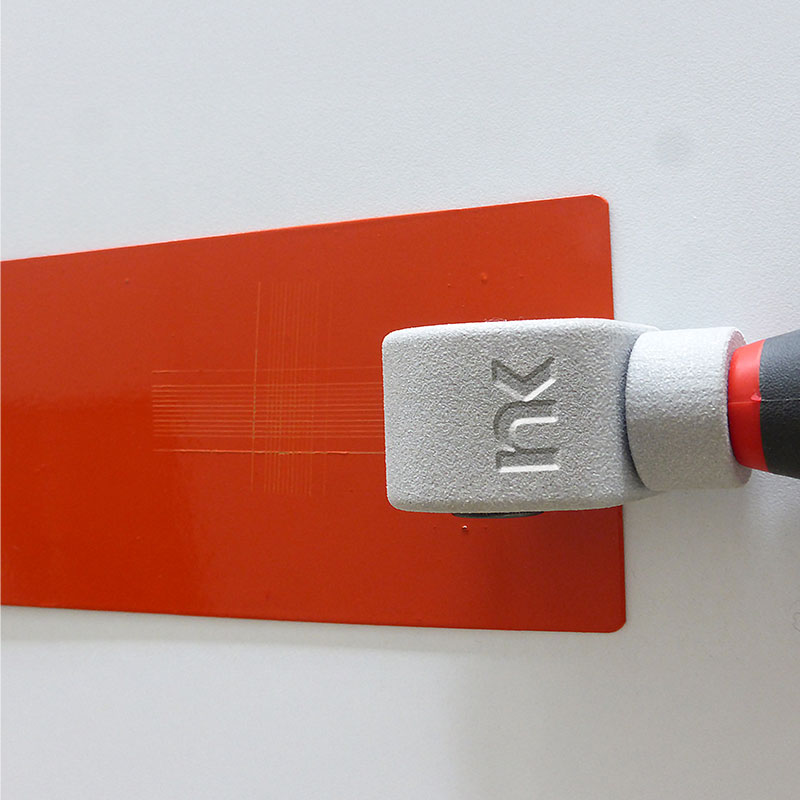

1. Cross-cuts are made on the painted surface, forming a grid that reaches the substrate.
2. The area is brushed and a standardised adhesive tape is applied.
3. When the tape is removed, the coating detachment is inspected with a magnifying glass.

This method makes it possible to verify:

• The adhesion of the paint to the substrate.
• The cohesion between coating layers.
• The state of application or curing of the product.

What’s included in the CC2000 Case Kit?

• Handle with special head.
• Cleaning brush.
• Inspection magnifying glass.
• Adhesive tape compatible with ISO 2409.
• (Blades sold separately).

Standards

ASTM D3359, DIN 53151, and UNE EN ISO 2409.

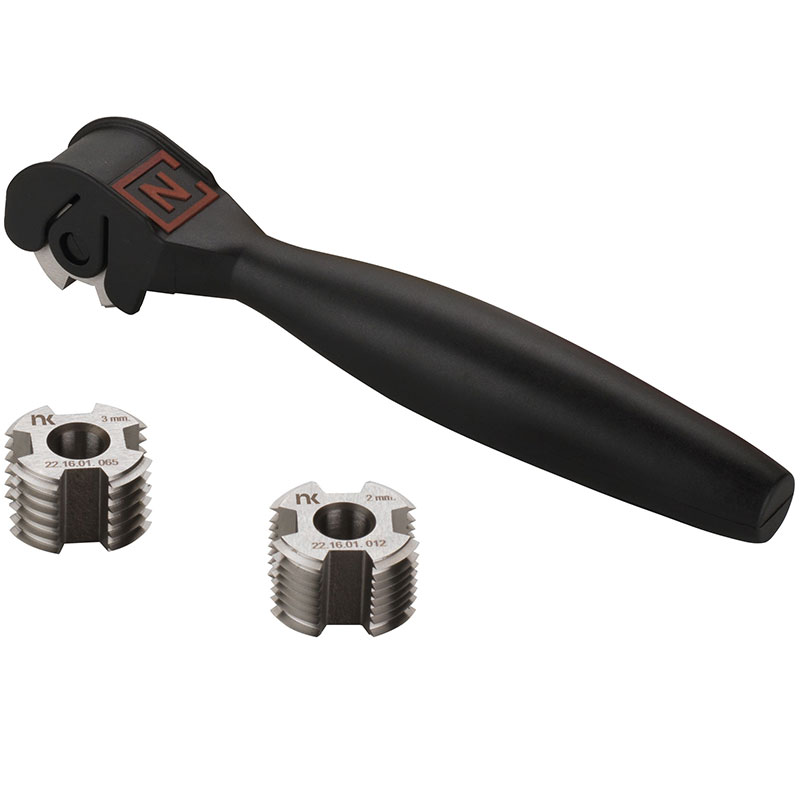

Optional Accessories – Blades

The blades are circular and feature 8 cutting zones, making them very durable. When one zone wears out, the wheel is rotated to the next zone.
