Every month, GRIP Engineering releases a newsletter presenting a selection of their newest test fixtures for universal testing machines. We’ve highlighted their newest selection of test fixtures for November 2025 in more detail below (datasheets are available on request).
THS521-Am20-Af20-D21-L300-psd
Stainless steel pull rod in special design with two compressed air connections and shielding against overheating in the temperature chamber. For installation on the top of the chamber.
Adapter connection: 20/8
Pin-to-pin distance: 300 mm

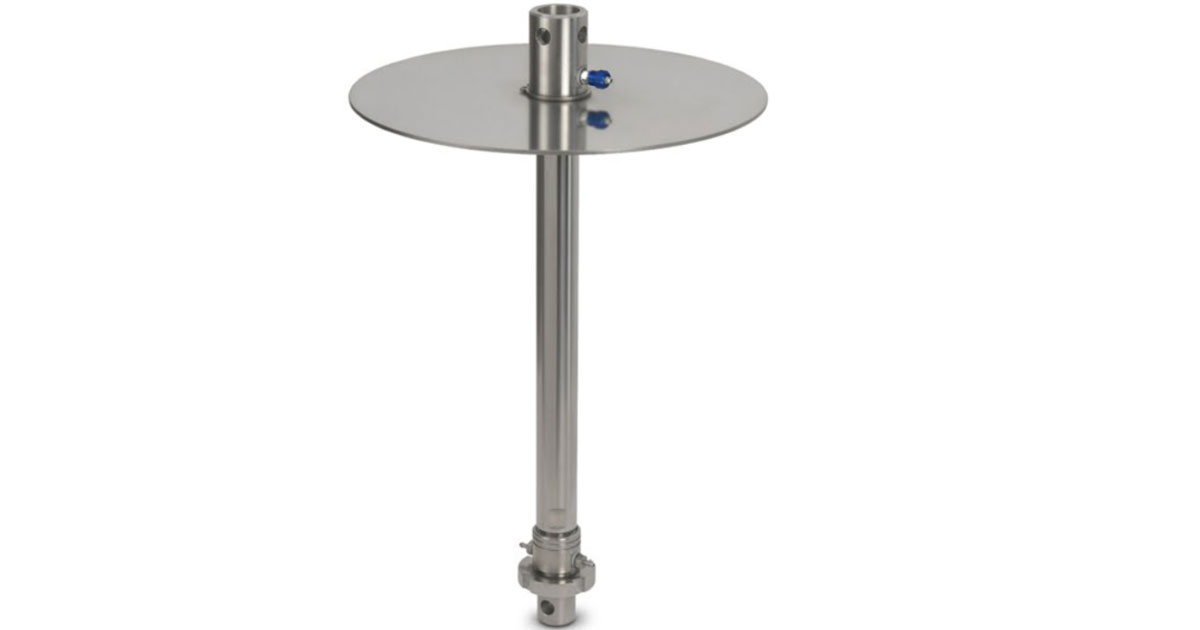

Specialised stainless steel pull rod with two compressed air connections and shielding against overheating in the temperature chamber.
TH221-D80-W120-Af318-TİN

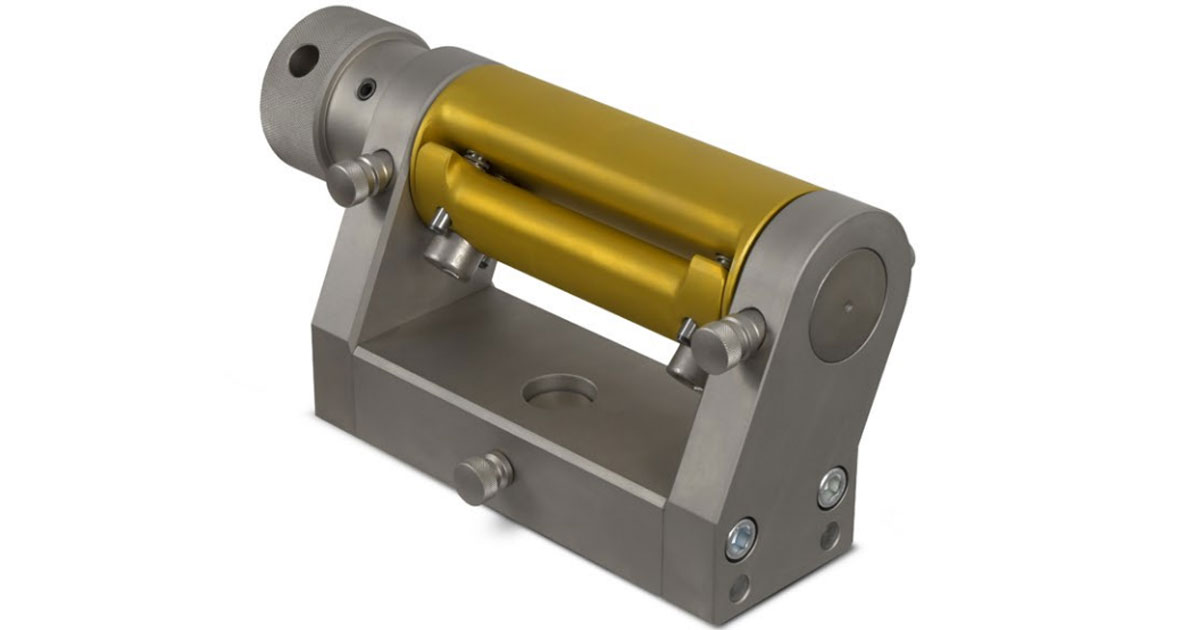

Special ribbon grip with titanium nitride coating for tensile tests on abrasive belts.
Roller diameter: 80 mm
Usable width: 120 mm
Wedge grip fixture with a pneumatic piston.
THS132-S135
Pneumatic grip with two pistons for symmetrical clamping of large specimens.
Maximum specimen diameter: 130 mm
Clamping force: 7 kN /7 bar
Temperature range: -30 °C to +180 °C

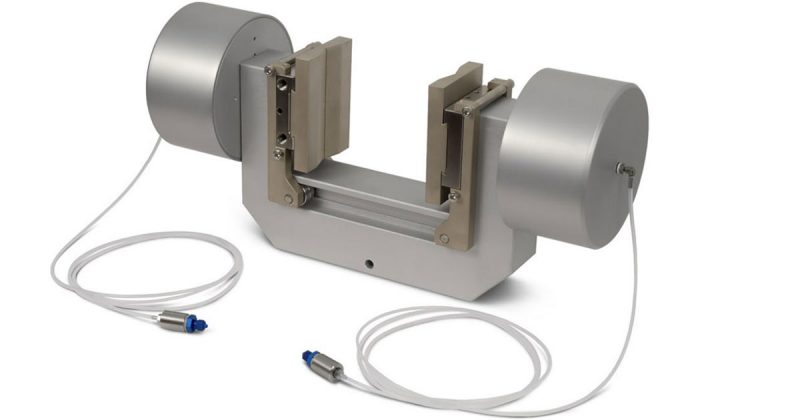

Symmetrical pneumatic grip with two pistons, visible on either side.

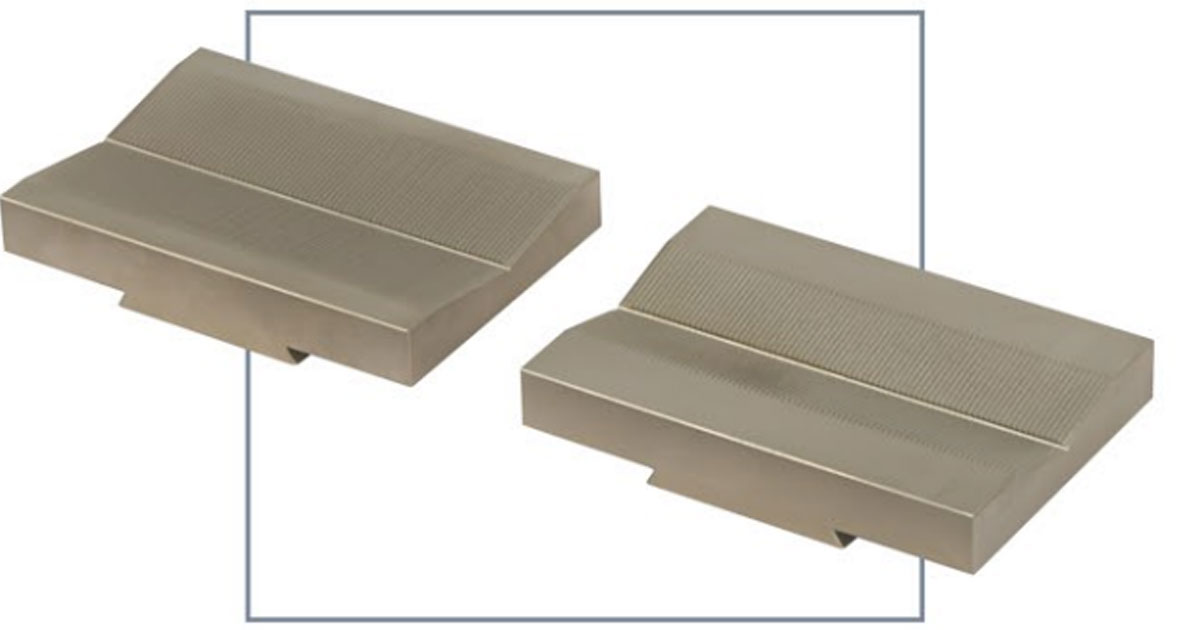

Serrated grip jaw faces.
AML Instruments offers an extensive range of tensile tester accessories, including extensometers, environmental chambers, and special grips and fixtures. We also have the ability to design bespoke fixtures.
Find yours today by contacting a member of the AML team or visiting our site.
