TQC Sheen Cross Cut Adhesion Test Kit CC2000

Benefits

• Frequently used and standardised instrument to test the adhesion of dry coatings on their substrate.
• Self-adjusting knife-holder ensures equal pressure on the cutting knife.
• Easy to change cutting knife, no extra key needed.

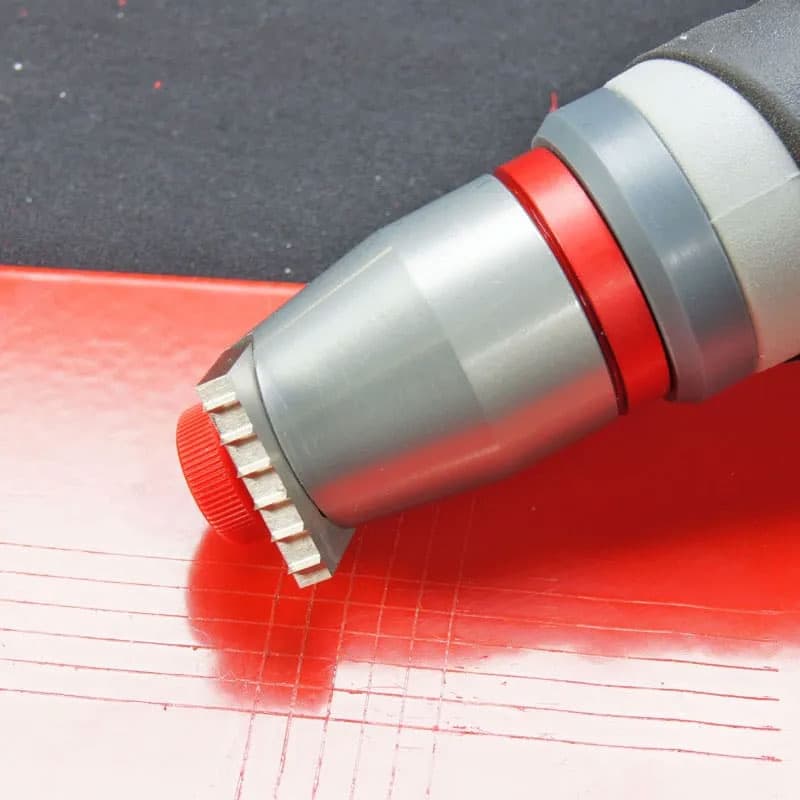

• Ergonomically shaped handle.
• Meets standards EN-ISO 2409 and ASTM D3359.
• Wide range of knife sizes available for different coating thicknesses and substrates and according to different standards.

Cross Cut Adhesion Test Procedure

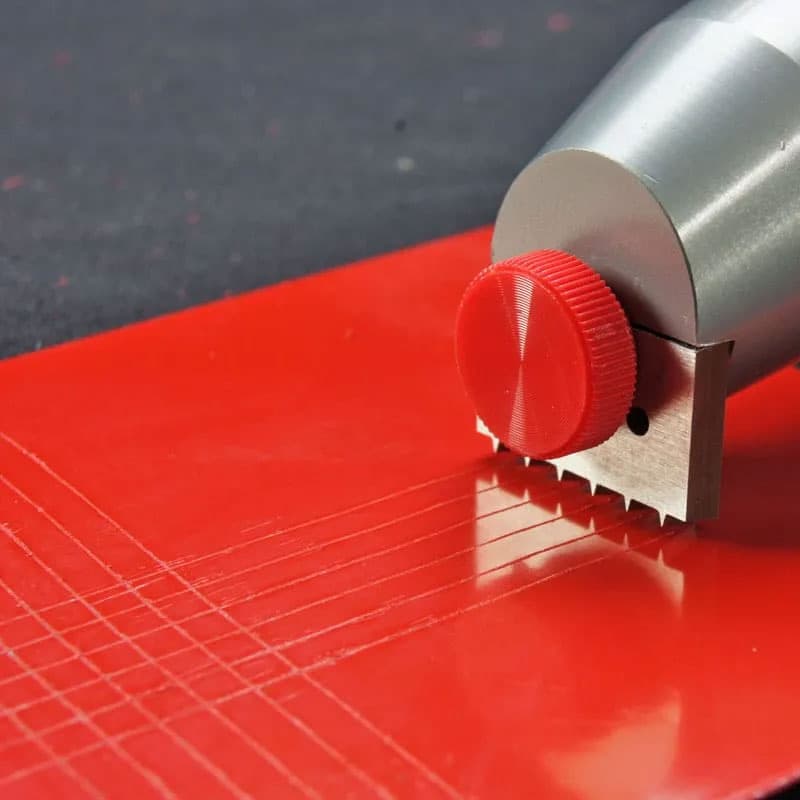

The TQC cross cut adhesion test involves two series of parallel cuts cross angled to each other to obtain a lattice pattern of 25 or 100 similar squares. Adhesive tape is then applied to see how much coating is removed. The ruled area is evaluated by using a table chart after a short treatment with a stiff brush, or adhesive tape for hard substrates.

Suitable Applications & Materials

The TQC CC2000 Cross Cut Adhesion Test Kit is used in a variety of industries and applications, including the coating/paint industry, automotive industry, shipping industry, and steel protection.

Applications: Material testing.

Materials: Inks and coatings.

Material: Aluminium, rubber, vacuum hardened stainless steel.
