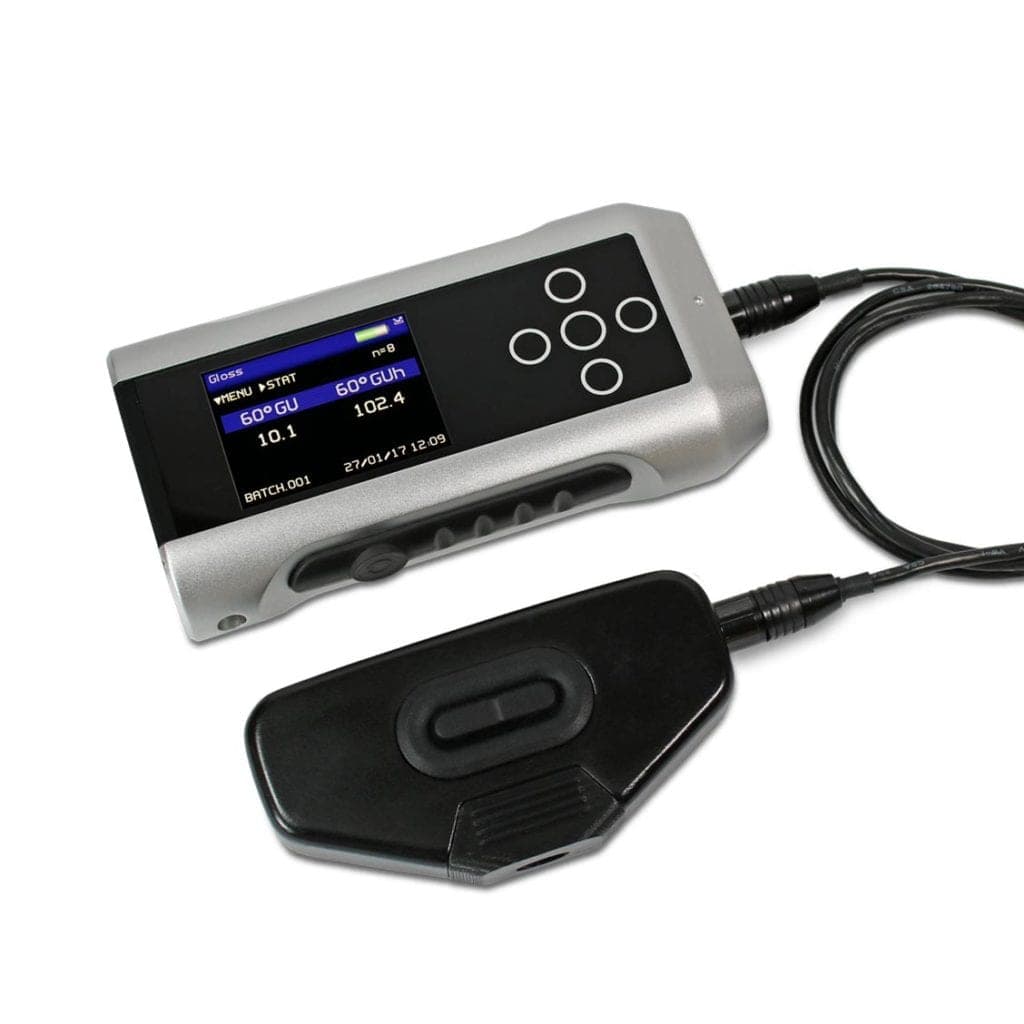

Small Area Gloss Meter Novo-Gloss Flex 60 Glossmeter
Manufactured by Rhopoint Instruments
This Rhopoint gloss meter is specifically designed to measure gloss levels of hard-to-measure small and delicate surfaces a traditional gloss meter can’t.
It combines the reporting capabilities and functionality of the advanced Novo Gloss range with a small and lightweight measuring head. In addition to the head, the instrument has a unique second measuring scale that has a resolution that is ten times greater than a standard 60° Glossmeter which ensures accurate measurement of low gloss surfaces.
Price on quotation
Benefits
- Compact measuring head enables curved surfaces and small areas to be measured easily.
- Measuring area 60°: 6mm x 12mm.
- Bespoke 3D printed adaptor jigs available for repeatable sample positioning.
- Alternative rubber, felt or plastic adaptors can be specified for delicate surfaces.
- Onboard Statistics (max, min, mean, S.D.) and graphs.
- Results batching with user definable names.
- Measurements are compatible with traditional glossmeters complying to these standards.
- Meets the requirements of ISO 2813 and ASTM D523.
- Rhopoint Data Widget – Allows results to be instantly transmitted to any PC package such as Excel, Word, SPC programs etc.
- Bluetooth Compatibility – transmit data to any smartphone, tablet or PC.
- USB results download to PC without the need to install software.
-
- Simultaneous Data Transfer Via Bluetooth
-
- Supplied With Low & High Gloss Tile
-
- Precision Connection Between Tile & Head To Ensure Repeatable Calibrations
-
- Measuring Head & Tile
-
- Easy To Use Menu System
-
- Pass / Fail Criteria Can Be Set By The User
-
- Onboard Statistics
-
- Trend Graph
-
- Easy To Read Display
Important: All specifications, illustrations and descriptions of products are intended to give a general idea of the products available and are subject to alteration. We reserve the right to substitute an alternative of similar specification at our discretion. We have taken all reasonable steps to ensure the accuracy of product information provided, but we accept no liability for any errors or omissions.
- Automotive interior trim.
- Curved plastic parts.
- Furniture.
- Plastics industry.
Specifications
GLOSS
| 60° | Universal angle – all gloss levels | |
| GUh | Improved resolution for low gloss finishes |
| GU | GUh | |
|---|---|---|
| Measurement range: | 0-125 GU | 0 -125 GUh (0-12.5 GU) |
| Resolution: | 0.1 GU | 0.1 GUh (0.01 GU) |
| Repeatability: | ±0.2 GU | ±0.5 GUh (0.05 GU) |
| Reproducibility: | ±0.5 GU | ±2.0 GUh (0.2 GU) |
| standards: | ISO 2813, ASTM D523, ASTM D2457 DIN 67530, JIS 8741, JIS K 5600-4-7 |
INSTRUMENT SPECIFICATIONS
Operation
- Full colour easy to read screen
- Adjustable brightness
- 6 button touch sensitive interface
Construction
- Integrated calibration holder with in-position detector for
error free calibration
Measurement
- Fast measurement
- Results batching with user definable names
Statistical Analysis
- Max, min, mean, S.D.
Graphical Analysis
- On board trend analysis
Power
- Rechargeable lithium ion
- 17+ hours operation
- 14,000+ readings per charge
Memory
- 8MB= >2000 readings
- User definable alphanumeric batching
Data Transfer
- Bluetooth
- PC compatible
- USB connection, no software install required
- Novo-Gloss MultiGauge analysis software
Measurement Area
- 60°: 6mm x 12mm
- Operating Temperature: 15 – 40° C (60 – 104° F)
- Humidity: Up to 85%, non condensing
Dimensions & Weight
- Instrument: 80 x 150 x 35mm (H x W x D), 392g
- Measurement head: 60 x 110 x 28mm (H x W x D),109g
- Packed weight: 1.6kg
- Packed dimensions: 110mm x 280mm x 220mm (H x W x D)
- Commodity code: 9027 5000
