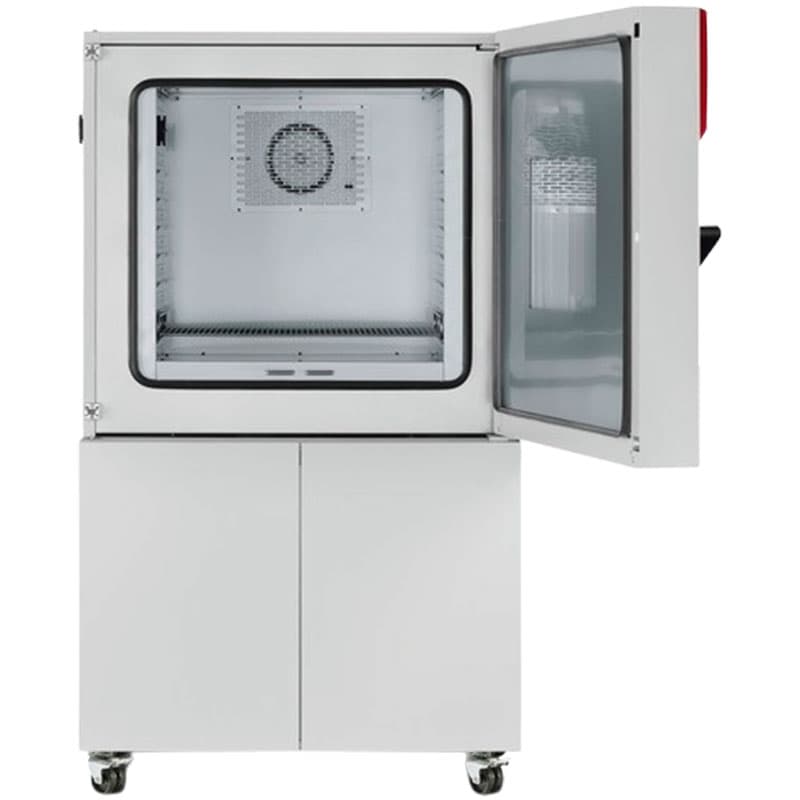

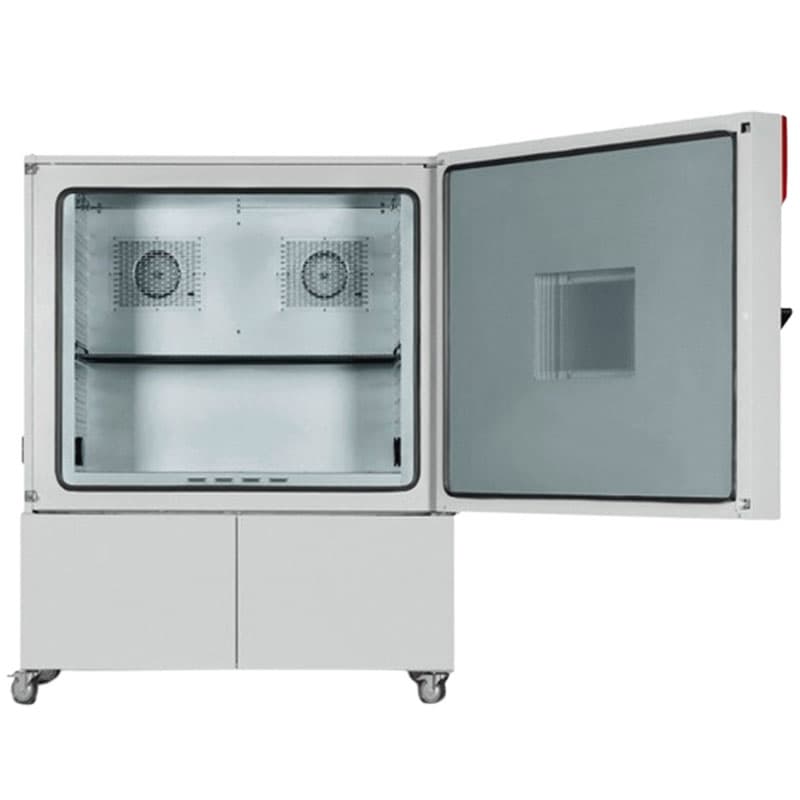

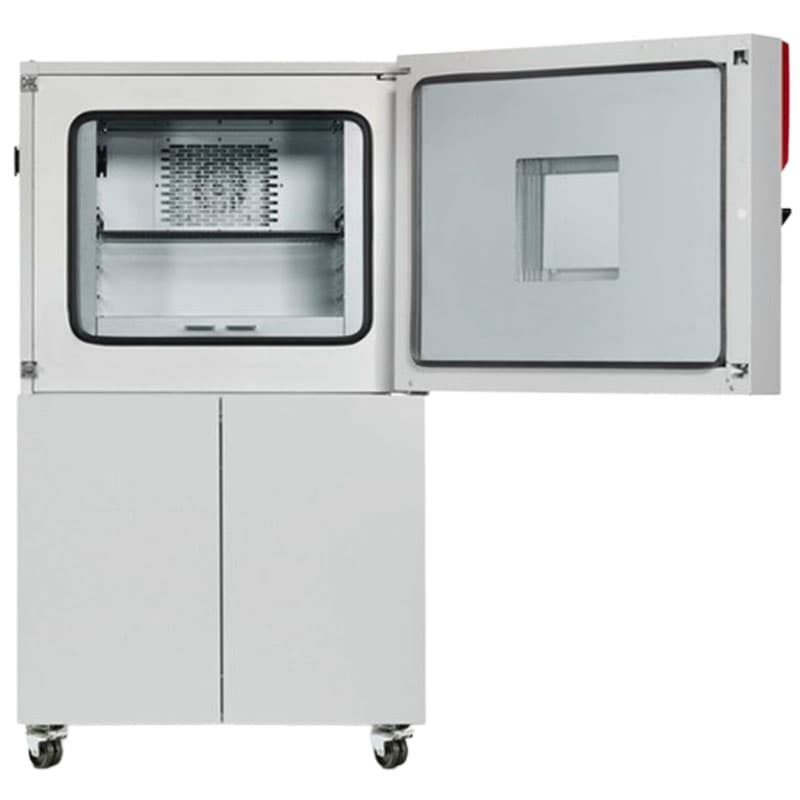

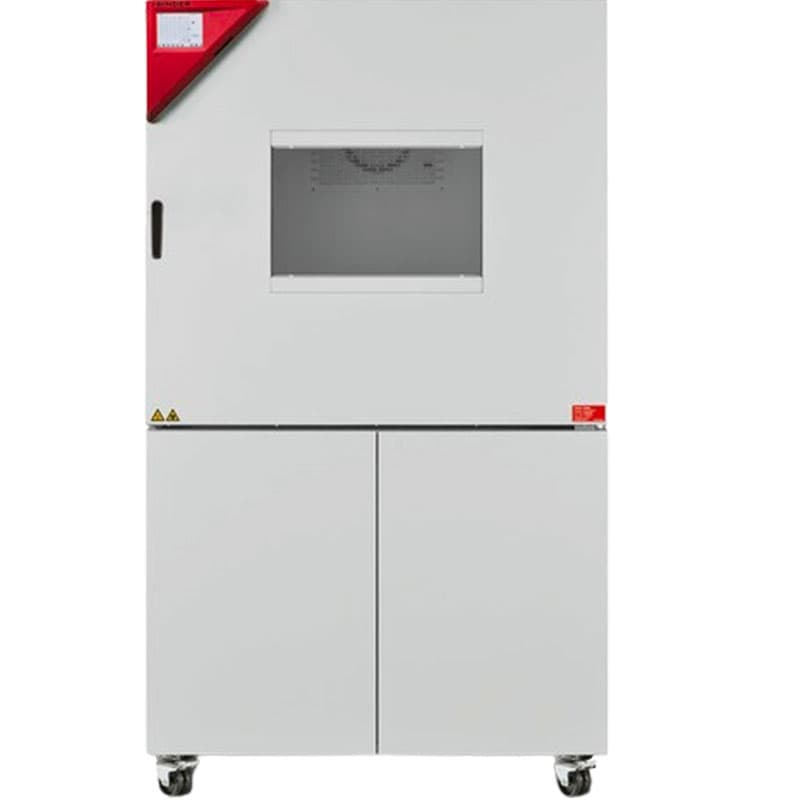

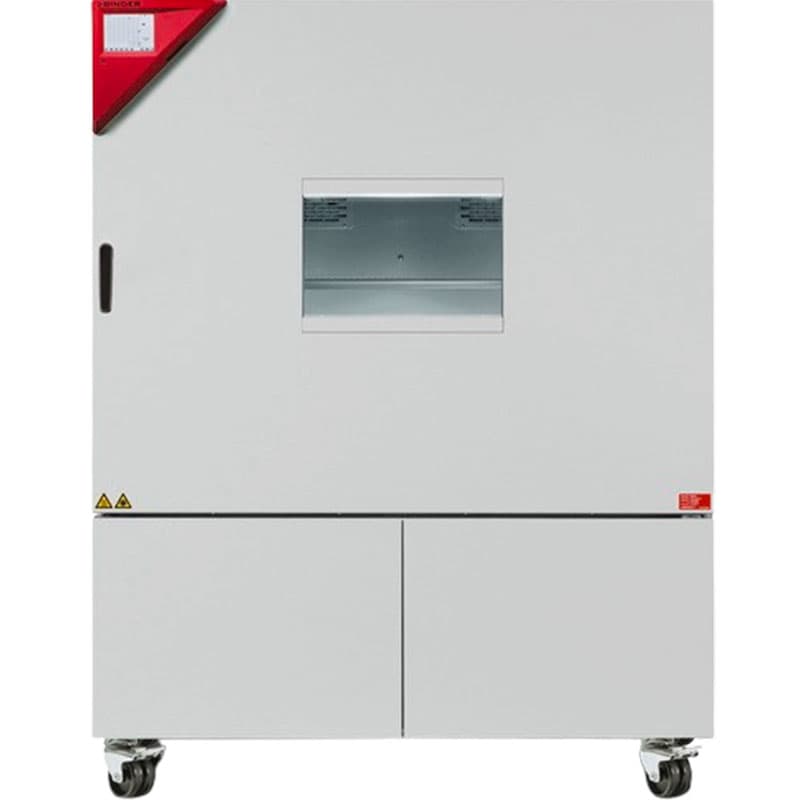

Rapid Dynamic Climate Chambers, Extended Range Series MKFT

Benefits

• Specialist chamber for dynamic alternating climate change between -70 °C and 180 °C.
• Humidity range: 10% to 98% RH.
• Integrated 20 litre water storage tank.
• Automatic water and wastewater management.
• 4 zero-voltage relay contacts.
• APT.line™ preheating chamber technology ensures homogeneous climate conditions.
• Intuitive touchscreen controller with time-segment and real-time programming.
• Internal data logger, measured values can be read out in open format via USB.
• Heated viewing window with LED interior lighting allows you to easily see what’s going on inside the chamber.
• Humidity regulation with capacitative humidity sensor and vapour humidification.
• BINDER Multi Management Software APT-COM™ Basic Edition.
• Troubleshooting system with visual and audible alarms.
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm.
• Access port with silicone plug: 50 mm, left.
• 4 castors, two with brakes for easy manoeuvrability of the chamber from A to B.
• Computer interface: Ethernet.
• Adjustable ramp function.
• Integrated chart recorder.
• Real-time clock.
• Door heating.
• Alarm notification in the event of insufficient water in fresh water tank.
• Stainless steel rack.
• Complete safety connection kit for water supply and drainage, up to 1m in height.
• Inner chamber made of hygienic and robust stainless steel.
• CFC-free refrigerants R-452A and R-23.
• Cooling with cascade compressor cooling unit.
• Environmental chamber calibration service available.



For a comprehensive overview of the technical data of our MKFT Series Dynamic Climate Chambers, please download the “Data Sheet” further up the page.
