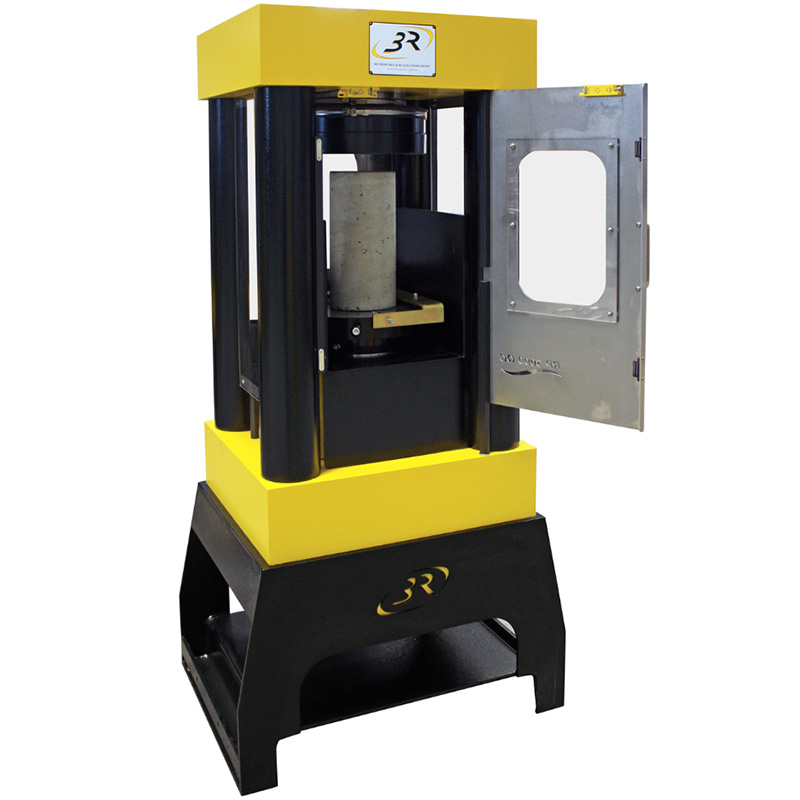

Four-Column Compression Testing Machine – 3000 kN
Manufactured by 3R Industries
Designed in accordance with European standards, this Class 1, four-column compression test machine has a maximum testing force of 3000 kN. It’s designed to perform tests on cubic specimens (10×10 – 15×15 – 20×20) or cylindrical specimens (11×22 – 15×30 – 16×32).
Its generously dimensioned 4-column structure offers low deformation under load, ensuring long service life for the frame.
Ergonomics are also carefully considered, with a working height of 1.050 mm, and perforated feet for easy and safe handling.
Price on quotation
Benefits
- Guarantees reliable tests at high loads thanks to a rigid structure suited to intensive testing.
- Fully machined to guarantee perfect alignment of the thrust centre.
- High-stiffness frame controlled with footmeter.
- Designed in accordance with European standards.
- Protection grids with electrical safety detector.
- Foot designed for easy handling with forklift.
- Meets EN 12390-4 standards.
- 2000 kN and 5000 kN capacities also available.
Industry: Civil engineering testing labs.
- Hardened steel platens ø 300 mm – Hardness ≥ 600 HV30.
- Test chamber height: 340 mm – 170 mm with spacers.
- Testing force: 3000 kN.
