Benefits
- Easy-to-use yield strength testing instrument, especially suited to assessing the yield strength and consistency of thick paints and other materials such as gels and putties.
- Simple to operate, offering both manual and automatic operation.
- Four lines digital display with backlight.
- Equipped with variable speed in the range from 0.5 to 5 rpm.
- Alternative paddle formats available, allowing for a wider range of viscosity products to be tested.

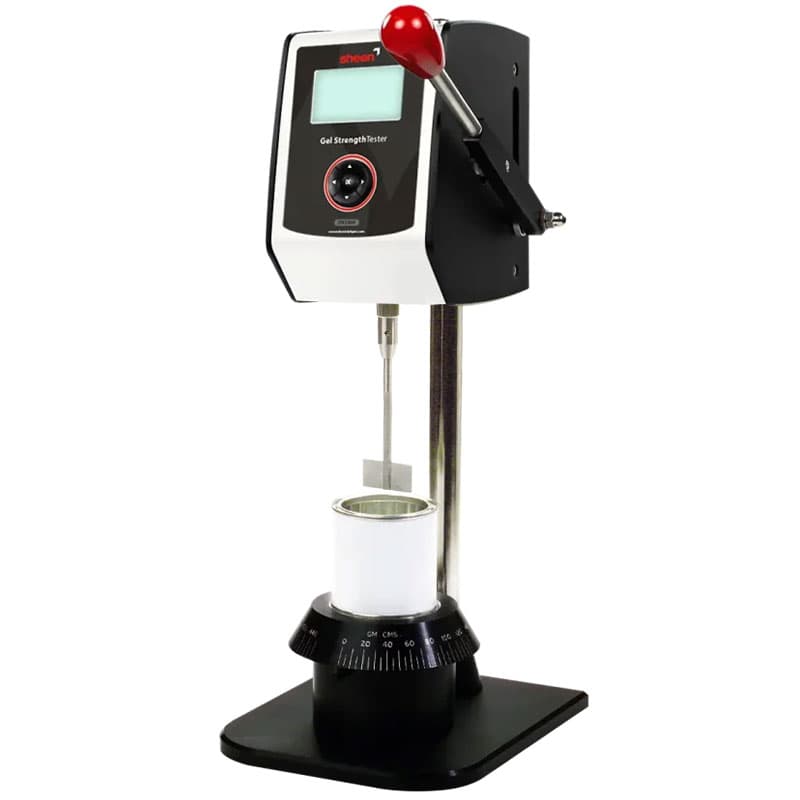

How the TQC Sheen Gel Strength Tester Works
A 250ml can containing the sample is magnetically fastened onto the turntable of the instrument. This turntable is loaded with a calibrated spring displaying an engraved scale of 0-450 gm/cm.
When immersed into the sample, the Gel Strength Tester’s flat (4 x 2 cm) paddle spindle (D) rotates automatically to the set speed of 0.5 – 5.0rpm. The paddle spindle drives the whole can and turntable. After a peak reading followed by a short time of stabilization, a steady torque value is indicated on the Gel Strength Tester’s scale.
Suitable Applications & Materials
Applications: Sample preparation, viscosity testing.
Materials: Inks and coatings.
- Mains: 100-240V / 50-60Hz
- Operating temperature: +5°C – +40°C / +41°F – 104 °F
- Net weight: 8500 g / 18.7 lbs
- Speed: 0.5 – 5.0 rpm
- Spindle: Gel Strength Tester DV2401
- Range: 0 – 450 g/cm
- Resolution: 10 g . cm
- Accuracy: ± 2% of full scale Repeatability ± 1% of full scale
- Sample container: Minimal diameter of opening.
- Dimensions (W x D x H): 200 x 360 x 550mm / 7.9 x 14.2 x 21.7inch
