4-Point Bending Stiffness Tester ISO 5628 / DIN 53121

4-Point Bending Stiffness Tester ISO 5628 / DIN 53121
Click to enlarge
Product Overview

4-Point Bending Stiffness Tester ISO 5628 / DIN 53121

4-Point Bending Stiffness Tester, the bending stiffness is the ratio between the bending moment applied to the standard sample and the defection within the elastic area of the board. ...

Back Get a quotation Ask a Question

Get a quotation

Ask a question

4-Point Bending Stiffness Tester ISO 5628 / DIN 53121

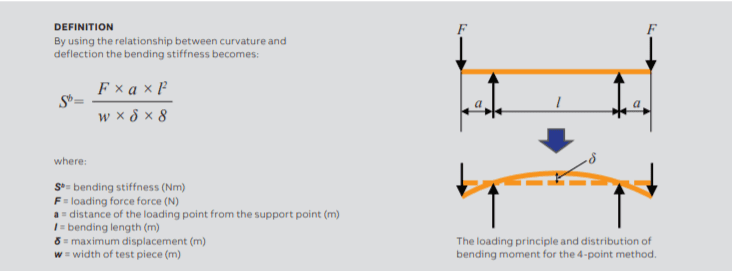

4-Point Bending Stiffness Tester, the bending stiffness is the ratio between the bending moment applied to the standard sample and the defection within the elastic area of the board.

Within the Corrugated Board Industry the Bending stiffness is very important to achieve good stacking and BCT strength. The two biggest influences on Board Stiffness are the tensile strength of the lining paper and corrugated board thickness.

4-Point Bending Stiffness Tester Features

  • Fully compliant with ISO 5628 / DIN 53121
  • 15″ PC Laptop
  • LYNX Testing software
  • LYNX module with statistical analysis
  • High accuracy 500 N load cell 0.5%  of the applied load (other load cells available)
  • Automated cross head return after the test.
Bending Stiffness

Bending Stiffness











4-Point Bending Stiffness Tester can be configured for may other tests

Download data sheet for more information on this tester or contact us today for friendly professional advice

AML Instrument are the exclusive UK agent for TLS we fully support their range of test equipment for the paper and packaging industries. TLS / Metrotec are based in Northern Spain and have been manufacturing test equipment since 1984.
