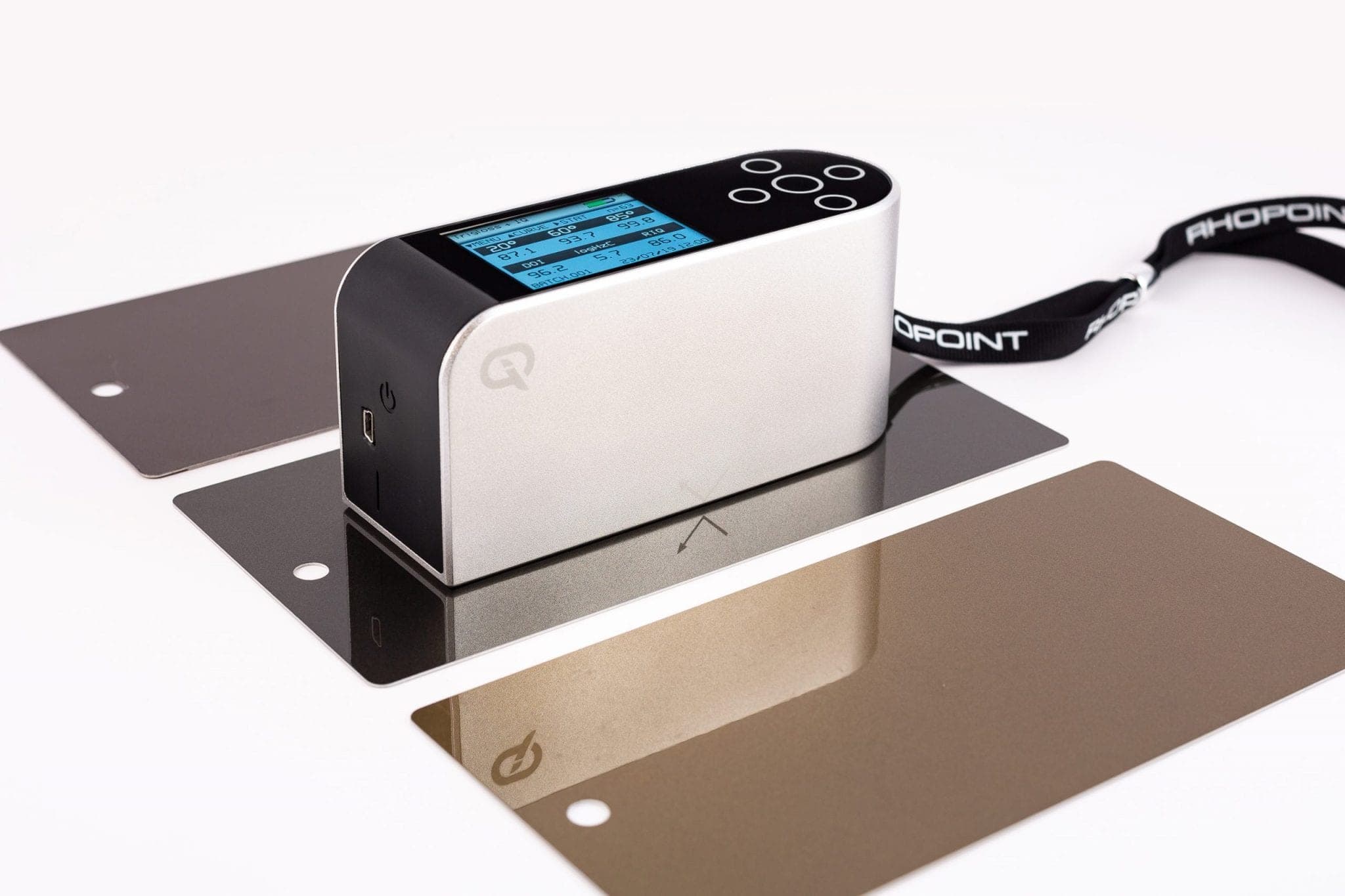

Rhopoint IQ Goniophotometer 20°/60°/85°

Rhopoint IQ Goniophotometer 20°/60°/85°

Manufactured by Rhopoint Instruments

The Rhopoint IQ 20°/60°/85° quantifies surface quality problems that are invisible to a standard glossmeter and profiles how light is reflected from a surface.

The Rhopoint IQ instrument measures the following parameters in a single button push

20/60/85° GLOSS • HAZE• REFLECTED IMAGE QUALITY (RIQ) • DISTINCTNESS OF IMAGE (DOI) RSPEC

  • Gloss: A measurement proportional to the amount of light reflected from a surface measured at 20° ( high gloss finishes) , 60° ( mid gloss finishes ) and 85° ( matt finishes)
  • Haze: An optical effect caused by microscopic textures or residue on a surface.
  • RIQ
  • This is to quantify effects such as orange peel and surface waviness. This new parameter gives better resolution results compared to Distinctness of Image (DOI). It also mimics more closely the human perception of surface texture, especially on high quality finishes such as automotive paint.
  • DOI: A measure of how clearly a reflected image will appear in a reflective surface.
  • RSPEC: The peak gloss value over a very narrow angle.

Features:

  • Easy to read full colour screen with adjustable brightness
  • 6 button touch sensitive interface
  • Fully automatic calibration with tile detection and verification for error-free calibration
  • Pocket sized instrument with integrated tile holder
  • Full onboard statistics (max, min, mean, S.D.)
  • On-board trend analysis graphs
  • Results batching with user definable names
  • Direct data input via Bluetooth – This allows each reading to be instantly transmitted to any PC package such as Excel, Word, SPC programs etc.
  • Software-free data transfer – USB download of results to PC without the need to install software

Do you need gloss meter calibration? AML’s engineers are highly trained and experienced at gloss meter calibration, service and repair for most manufacturers.

All specifications, illustrations and descriptions of products are intended to give a general idea of the products available and are subject to alteration. We reserve the right to substitute an alternative of similar specification at our discretion. We have taken all reasonable steps to ensure the accuracy of product information provided, but we accept no liability for any errors or omissions.

Not the gloss meter you were looking for? Why not check out the entire range of gloss meters we have available.

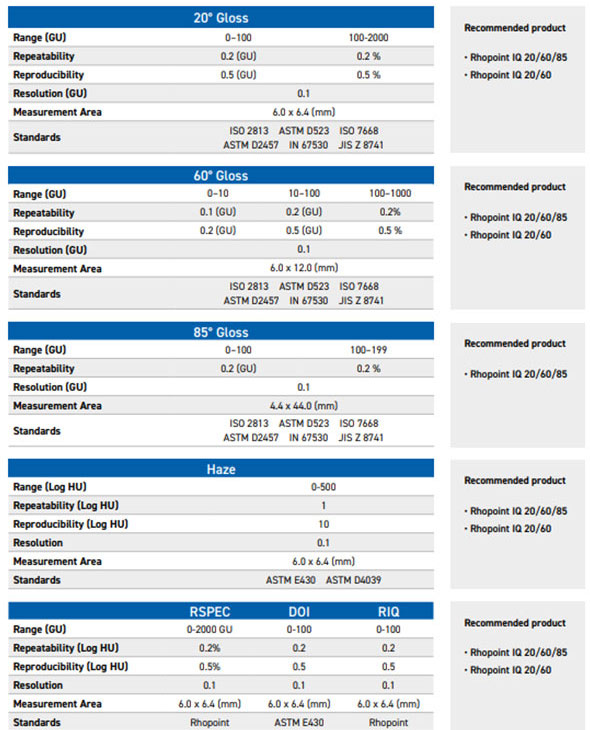

Rhopoint IQ ( Goniophotometer) 20°/60°/85° Specifications

Gloss:

  • Resolution 0.1 GU • Repeatability 0.2 GU • Reproducibility 0.5GU

Measurement range:

  • 20°: 0-2000GU, 60°: 0-1000GU, 85°: 0-199GU

RSPEC:

  • Peak Specular Reflectance @ 20° +/- 0.09905°

Measurement range:

  • 20°: 0-2000GU

Haze:

  • Near Specular Reflectance measured at 17-19°, 21-23°
  • Resolution 0.1 HU • Repeatability 0.2 HU • Reproducibility 1.5 HU

RIQ:

  • Resolution 0.1 • Repeatability 0.2 • Reproducibility 0.5
  • Measurement Range: 0-100

DOI:

  • Resolution 0.1 • Repeatability 0.2 • Reproducibility 0.5
  • Measurement Range: 0-100
  • Measurement spot:
  • 20° – 6mm x 6.4mm
  • 60° – 6mm x 12mm
  • 85° – 4mm x 45.9mm

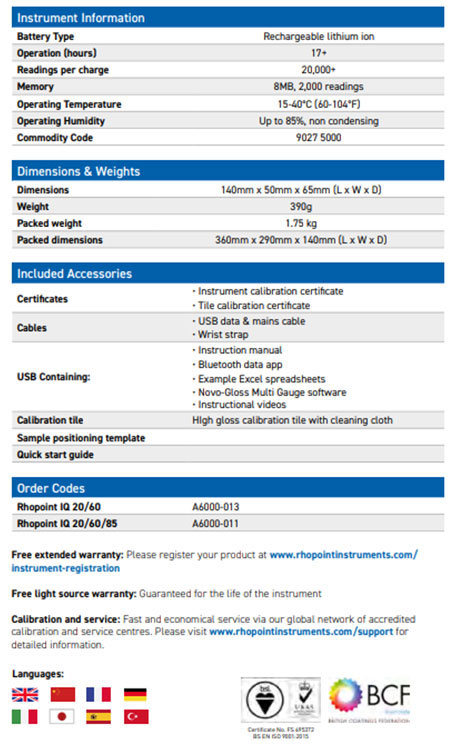

  • Power: Mains rechargeable in 4 hours
  • Battery life: 17hrs+ continuous operation or 20,000+ readings
  • Memory: On board memory for 999+ readings with full goniphotometric profiles
  • Operating Temperature: 15 – 40 ° C (60 – 104 ° F)
  • Humidity: Up to 85%, non condensing
  • Dimensions: 65 x 140 x 50mm (H x W x D)
  • Weight: 790g

Standards:

  • DIN EN ISO 2813 Determination of specular gloss of non-metallic paint films at 20 degrees, 60 degrees and 85 degrees
  • ASTM D523 Standard Test Method for Specular Gloss
  • ASTM D2457 Standard Test Method for Specular Gloss of Plastic Films and Solid Plastics
  • DIN 67530 Reflectometers a means for gloss assssment of plane surfaces of paint coatings and plastics
  • JIS Z 8741 Specular glossiness – Method of measurement
  • ISO 7668 Anodized aluminium and aluminium alloys – Measurement of specular reflectance and specular gloss at angles of 20 degrees, 45 degrees, 60 degrees or 85 degrees
  • ASTM E430 Standard Test Methods for Measurement of Gloss of High-Gloss Surfaces by Abridged Goniophotometry
  • ASTM D5767Standard Test Methods for Instrumental Measurement of Distinctness-of-Image Gloss of Coating Surfaces

Calibration service available please ask for a price.
